ㅎㅎㅎ....랜드크루서 언더드라이브 Fj/Bj40....
Marlin Crawler!! (314:1) Crawl Ratio
This unit is placed between your transmission and transfercase and features a 128% or 370% lower gear reduction. The rear adapter plate will enable a 3- or 4-speed style Land Cruiser one piece transfercase to bolt directly behind the proven reliability of a Toyota gear driven transfercase reduction box. The length of the ToyBox"s adapter plates are 1.2" for the front, and 1.35" for the rear, making an overall length of 6.75"(manual applications). Auto applications are slightly longer. The ToyBox features a top, direct shift handle and has provisions for a crossmember mount. Also, the ToyBox shares its oil with the transmission prolonging both the transmission and the ToyBox"s life with cooler oil operating temperatures.
Marlin Crawler!! (314:1) Crawl Ratio
This unit is placed between your transmission and transfercase and features a 128% or 370% lower gear reduction. The rear adapter plate will enable a 3- or 4-speed style Land Cruiser one piece transfercase to bolt directly behind the proven reliability of a Toyota gear driven transfercase reduction box. The length of the ToyBox"s adapter plates are 1.2" for the front, and 1.35" for the rear, making an overall length of 6.75"(manual applications). Auto applications are slightly longer. The ToyBox features a top, direct shift handle and has provisions for a crossmember mount. Also, the ToyBox shares its oil with the transmission prolonging both the transmission and the ToyBox"s life with cooler oil operating temperatures.

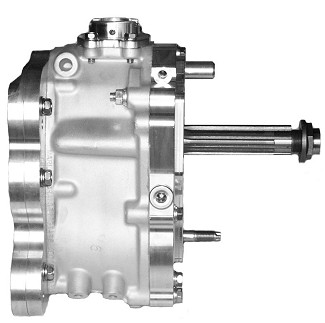

사진1

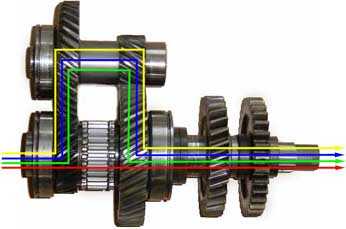

사진2 The ToyBox offers flexible gear ratio options. The standard low range is a 2.28:1, with an optional ratio of 4.70:1.
High Range 1.00:1
Low Range 2.28:1 Standard
Low Range 4.70:1 Optional
