여기 동영상에 설치방법올렷씀다. Alternator에따라서 3종류!!!! 이거하고 aircompressor 만잇으면 못할게업음



Product Highlights:







Power Produced: Hi Freq. Direct Current (DC)

Welding Amperage: 50 amps to 300 amps

Duty Cycle: 100%

Open Circuit Voltage: 42 volts

Closed Circuit ARC Voltage: 18 to 28 volts

Electrode Sizes: up to 5/32" (4.0mm)

Dimensions (W x H x D): 5.2" x 2.5" x 4.6"

Weight: 24 oz.

State-of-the-Art MOSFET Architecture

Pulse-Width Modulation (PWM) Regulation

100% Solid-State Engineering

No Mechanical Solenoids, Contacts, Switches, or Relays

Completely Automatic Switching Between Functions

Universal - Connects to Any 12v or 24v Alternator

Optional MOBI-POWER with 120v Outlet, 2.5kW or 4.5kw

Fully Programmable Mode Select Modules

Thermal Overload, Vibration, Dust, and Moisture Protection

Fail-Safe Mode - Won"t Damage Vehicles or Void Warranties

Flexible - Can be Shared Between Multiple Vehicles

Increases Battery Life by Regulating Voltage and Amperage

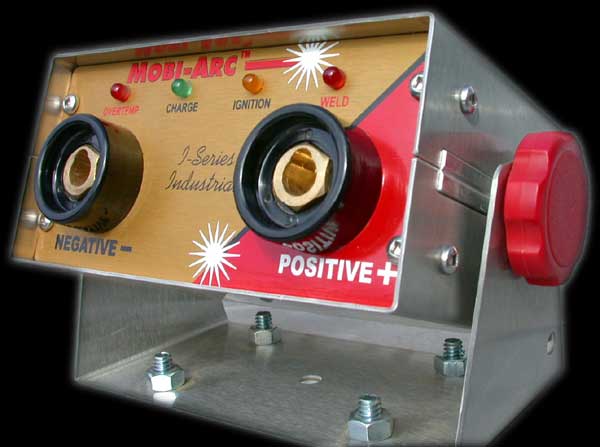

사진1 This unit can connect to, and control, any alternator rated 130 amps or less.
$595.00

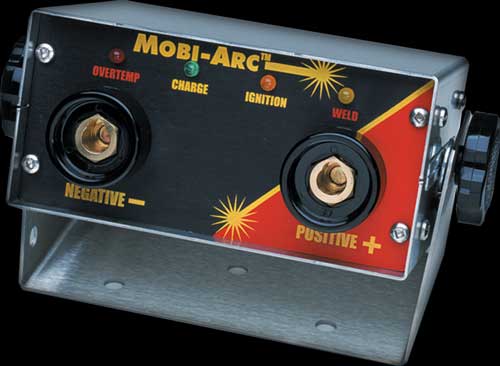

사진2 This unit can connect to, and control, any alternator rated 300 amps or less.
$925.00

사진3 This unit can connect to, and control, any alternator rated 200 amps or less.
$795.00
